Link Control

note

available in GNS3 version 2.1 and later.

Packet Filters

Packet filters can be applied on links without stopping any node.

Supported packet filters are:

  • Frequency_drop drop a packet every x packets.
  • Packet_loss randomly drop a packet
  • Delay: adds latency and/or jitter.
  • Packet_corruption randomly corrupt a packet.
  • BPF_(Berkeley_Packet_Filter) filter packets matching a BPF expression.

All packet filters can be combined, meaning you can apply both a packet loss filter and a delay filter on the same link that will be active simultaneously.

To apply a packet filter, right-click on a link, and select Packet filters:

screenshotscreenshot

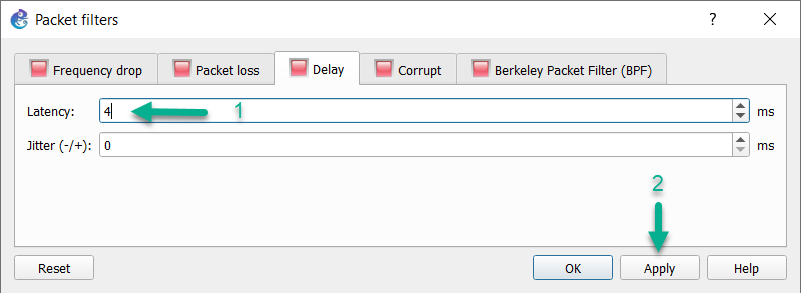

As an example, click the Delay tab, add a non-zero value for Latency, then click Apply:

screenshot

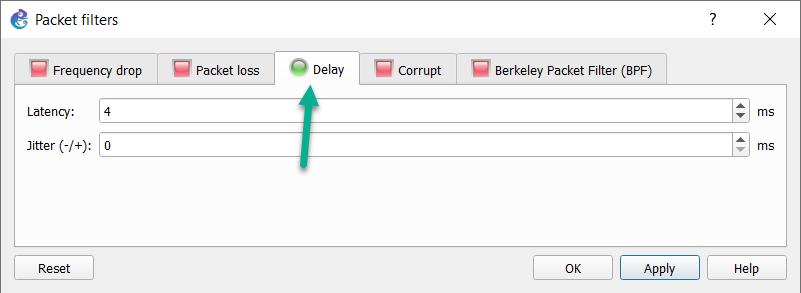

The icon on the Delay tab changes from a red square to a green circle, indicating it’s active:

screenshot

Click OK to close the Packet filters window:

screenshot

A filter icon will be displayed on the link to indicate one or more packet filters are active.

screenshot

Suspend a Link

It is possible to suspend a link. For instance, to simulate a temporary connectivity issue in your project. Suspending a link currently means that all packets going through the link will be dropped.

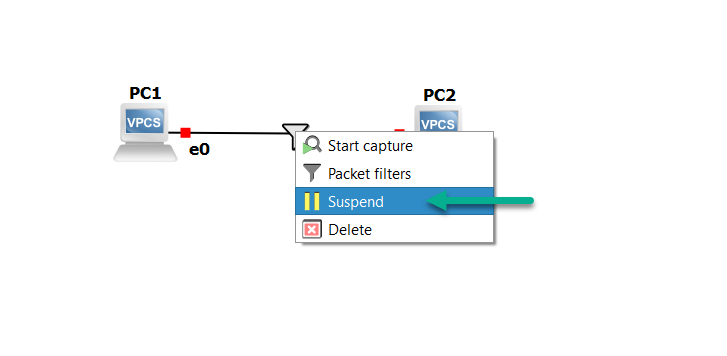

To suspend a link, right-click it and then select Suspend:

screenshot

The link is now suspended, so no traffic can pass through it:

screenshot
