Scale GNS3

GNS3 itself doesn’t have limitation on the number of nodes you can run into it. The limitation will be your hardware.

Run GNS3 on a remote server​

If your local machine is not enough to let you create the sorts of topologies you want to use, you can run GNS3 on a bigger machine locally or on a cloud Provider like Packet.

Split the load on multiple machine​

In order to cross the limitation of your hardware, you can use multiple GNS3 servers for running the same topology.

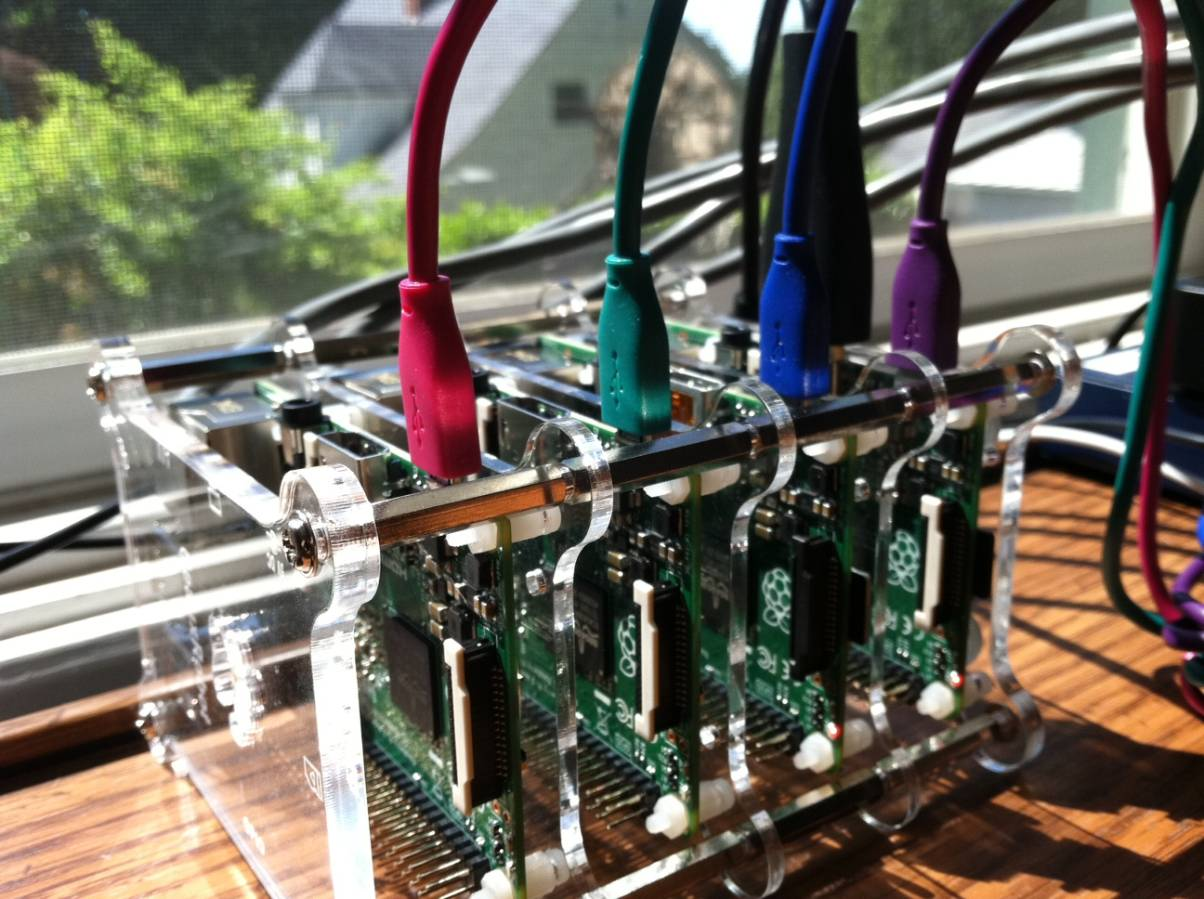

An example is Jason C. Neumann running GNS3 in a Raspberry Pi cluster: https://www.gns3.com/discussions/the-worlds-first-gns3-beowulf-cl

note

The PI use an ARM processor that is not adapted to run x86 code on Qemu. Also since this forum post, the interfaces have changed.

screenshot

Requirements​

  • You need the same version of the GNS3 server on all machines
  • All servers need to be on the same network . Nothing should prevent them from being able to communicate with each other

Limitations​

  • A node need to be explicitly created on a server. There is no smart allocation
  • You need to create an appliance template by server
  • You can’t move a node from a server to another
  • Portable projects are not supported
note

This is not definitive. GNS3 is evolving and contributions are welcome

Setup​

Add your remote servers​

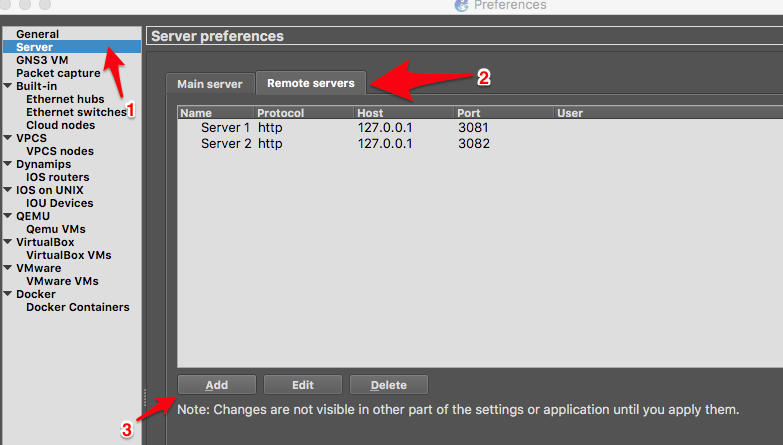

First you need to add your remote servers in the Server preferences:

screenshot

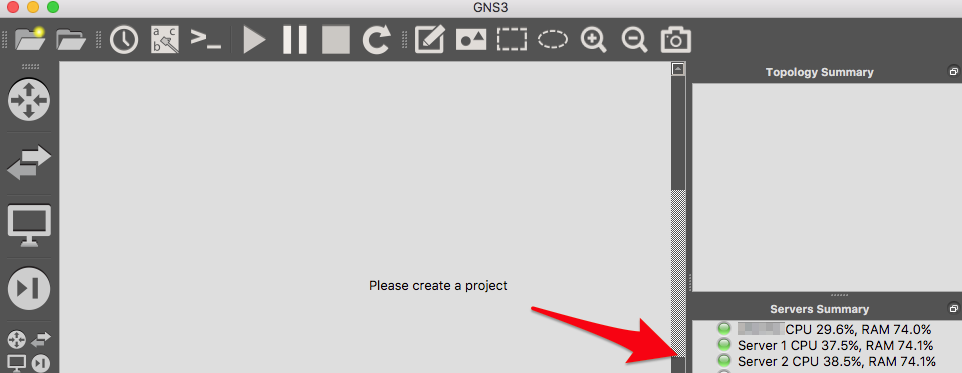

You will see these appear in the Server summary pane, along with the CPU/RAM usage of each:

screenshot

Setup the Appliance Templates​

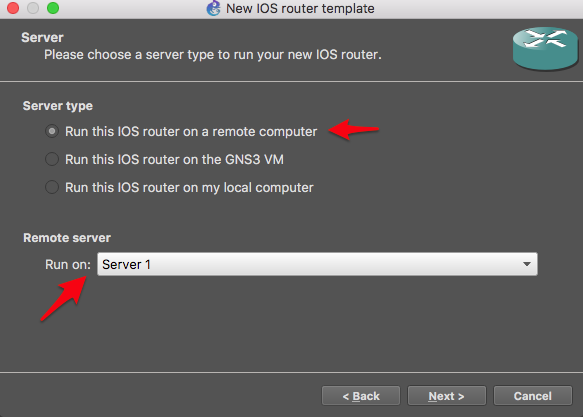

When you create your appliance template, choose a remote server:

screenshot

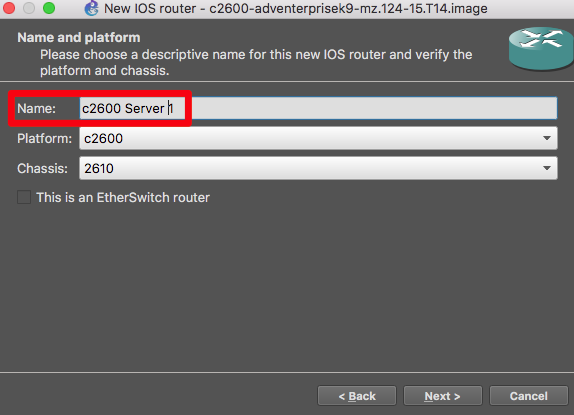

At the node name step, choose a name to help you remember which server this node will be run on:

screenshot

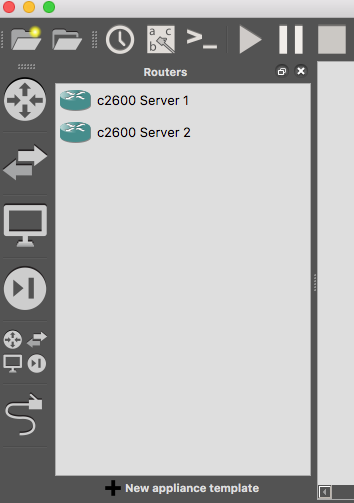

Create a second template for the other server. You have now two nodes that allow you to manually dispatch the load between servers:

screenshot

You can use the server summary in order to know which server has free resources:

screenshot
