How to inject faults for testing

Fault injection is a feature of the GNS3 AI Assistant. It simulates network problems in your topology. This helps you practice your network troubleshooting skills. The feature uses AI to automatically analyze your network topology, choose the right fault type, and inject it into the project.

Steps to Use

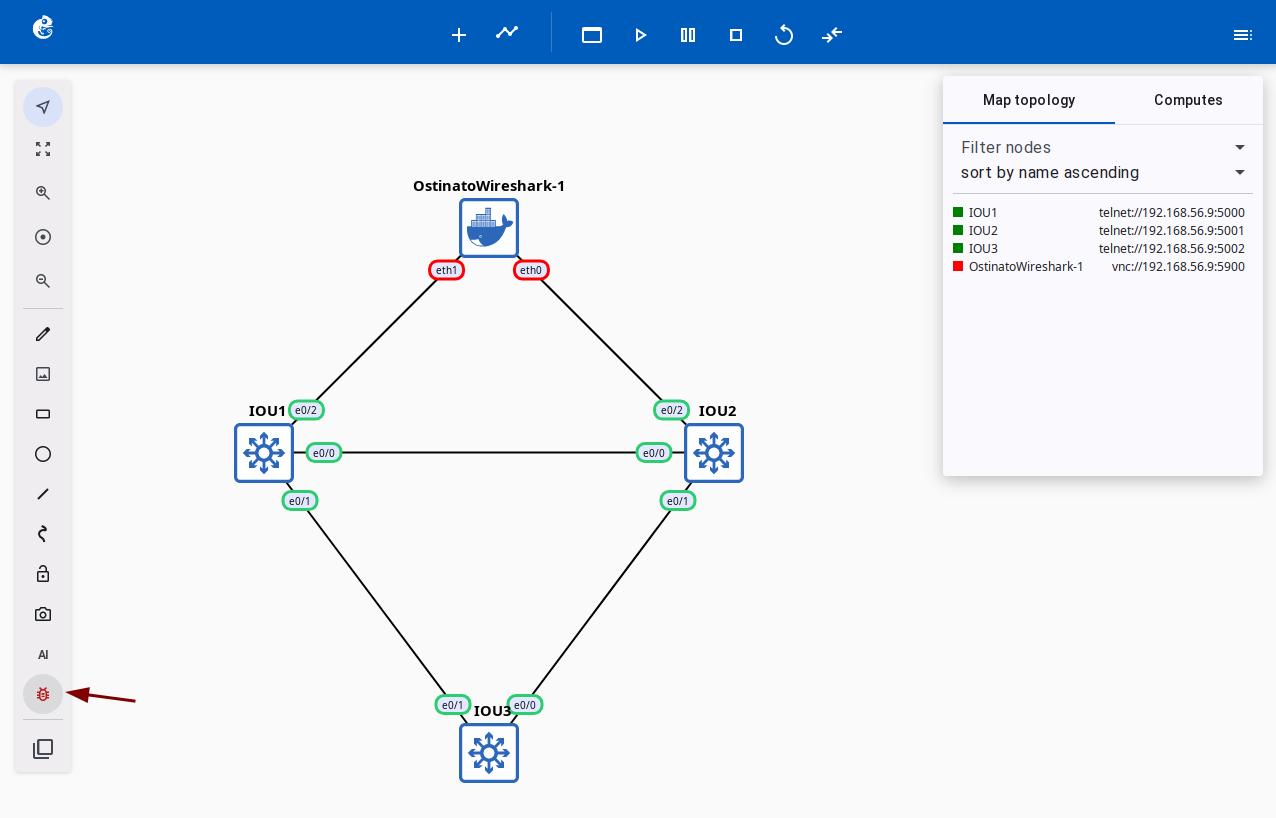

1. On the project topology page, click the fault injection button in the left toolbar (shown in the image below).

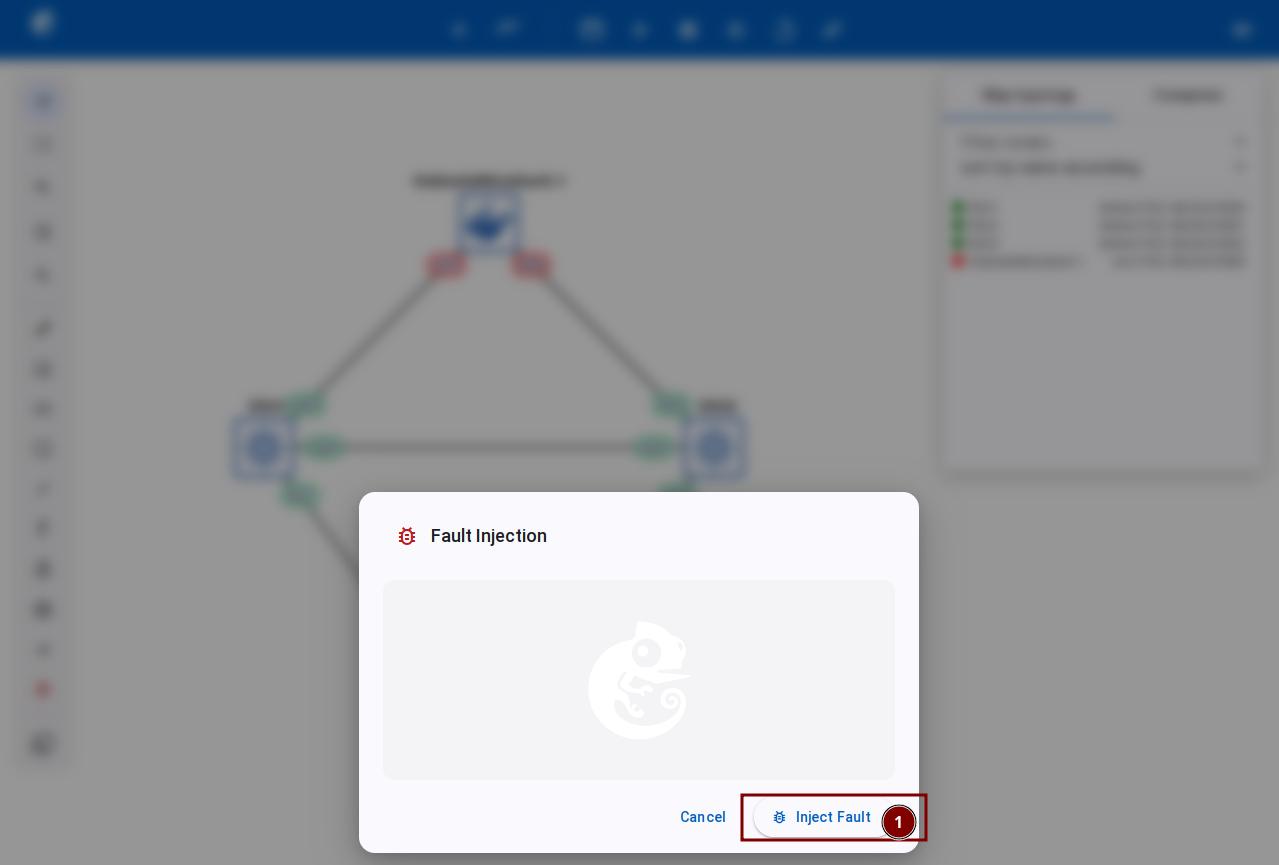

2. In the "Fault Injection" dialog, click the "Inject Fault" button.

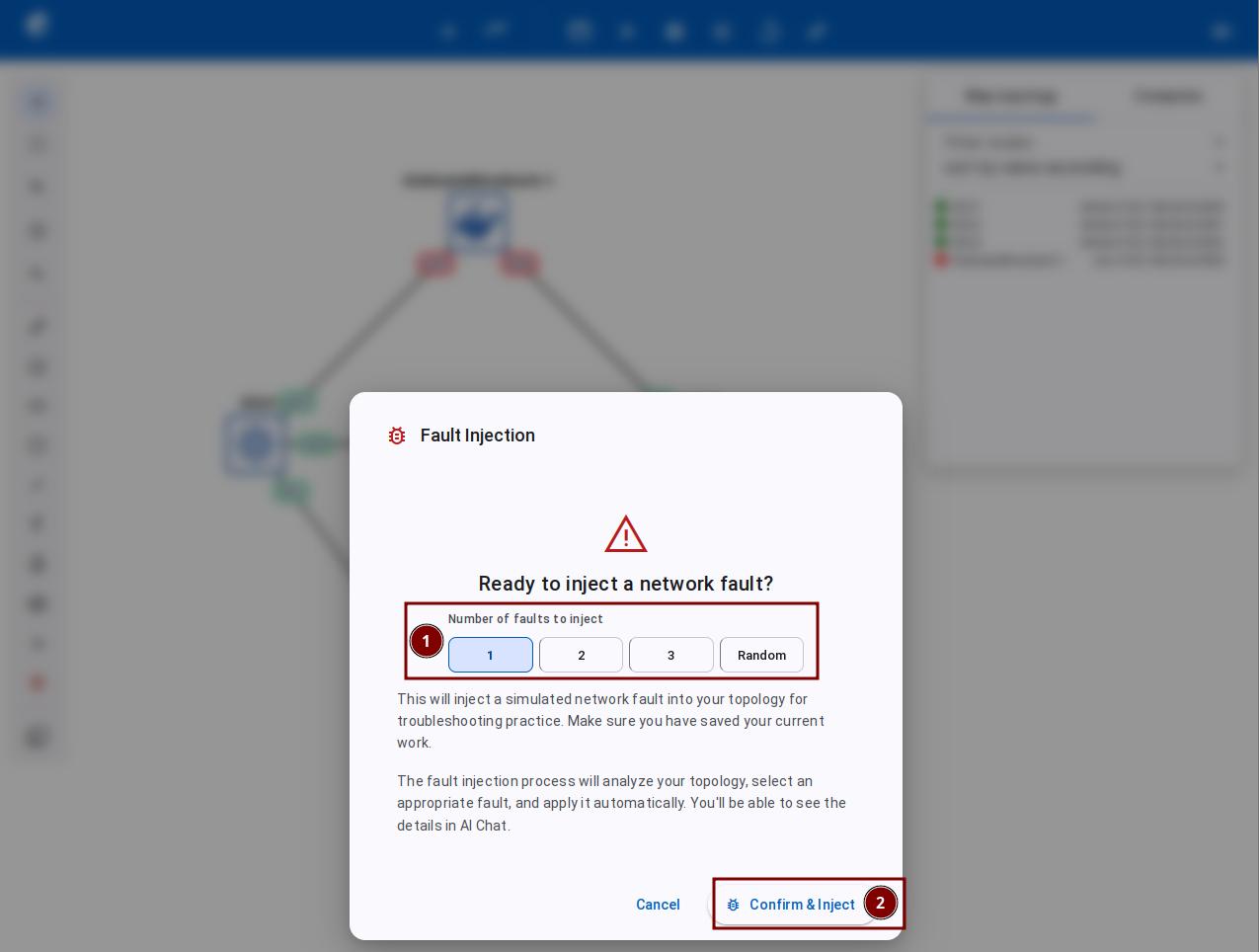

3. Choose how many faults to inject (you can pick 1-3 faults or a random number). Then click the "Confirm & Inject" button.

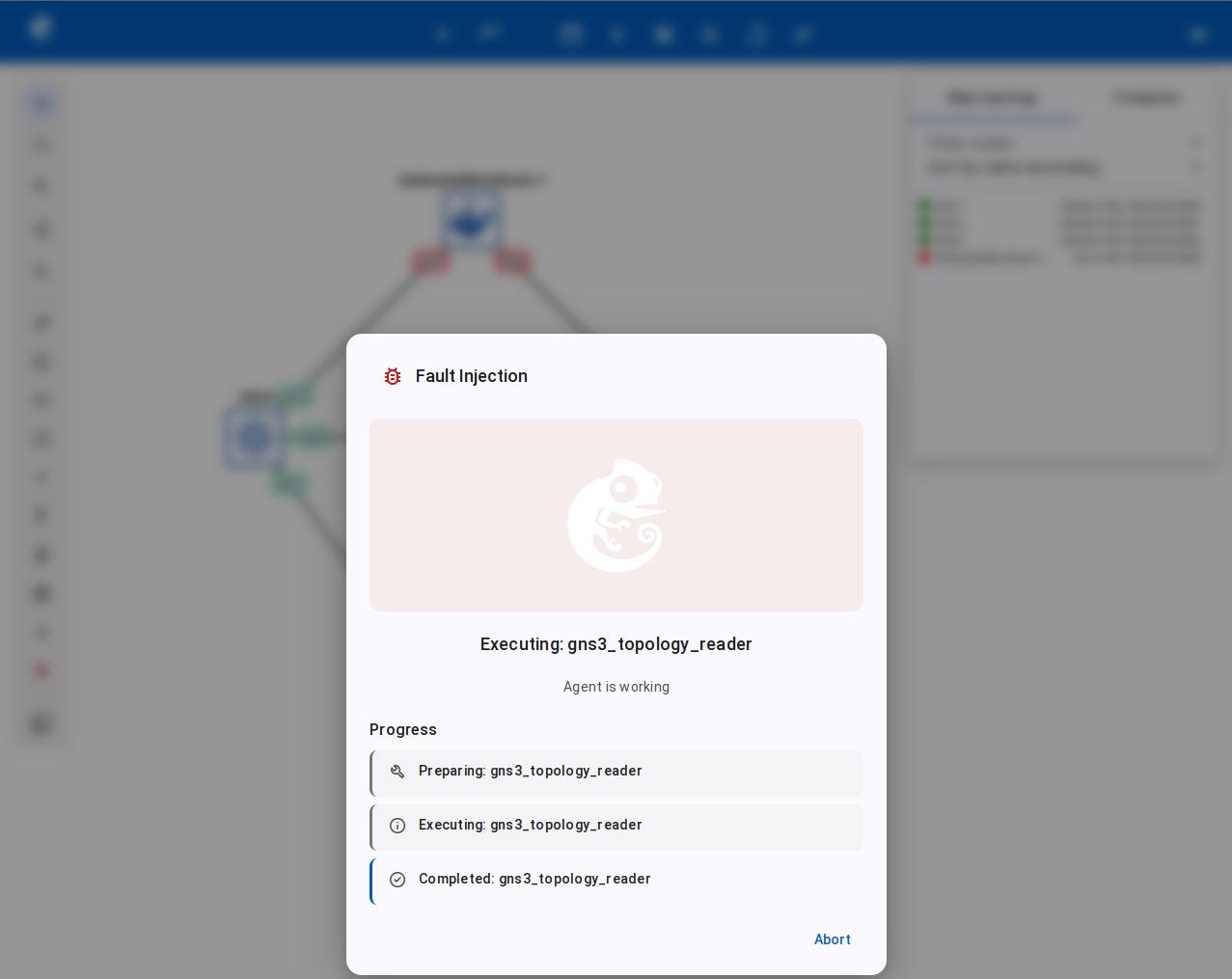

4. Wait for the fault injection to finish. The screen shows real-time progress.

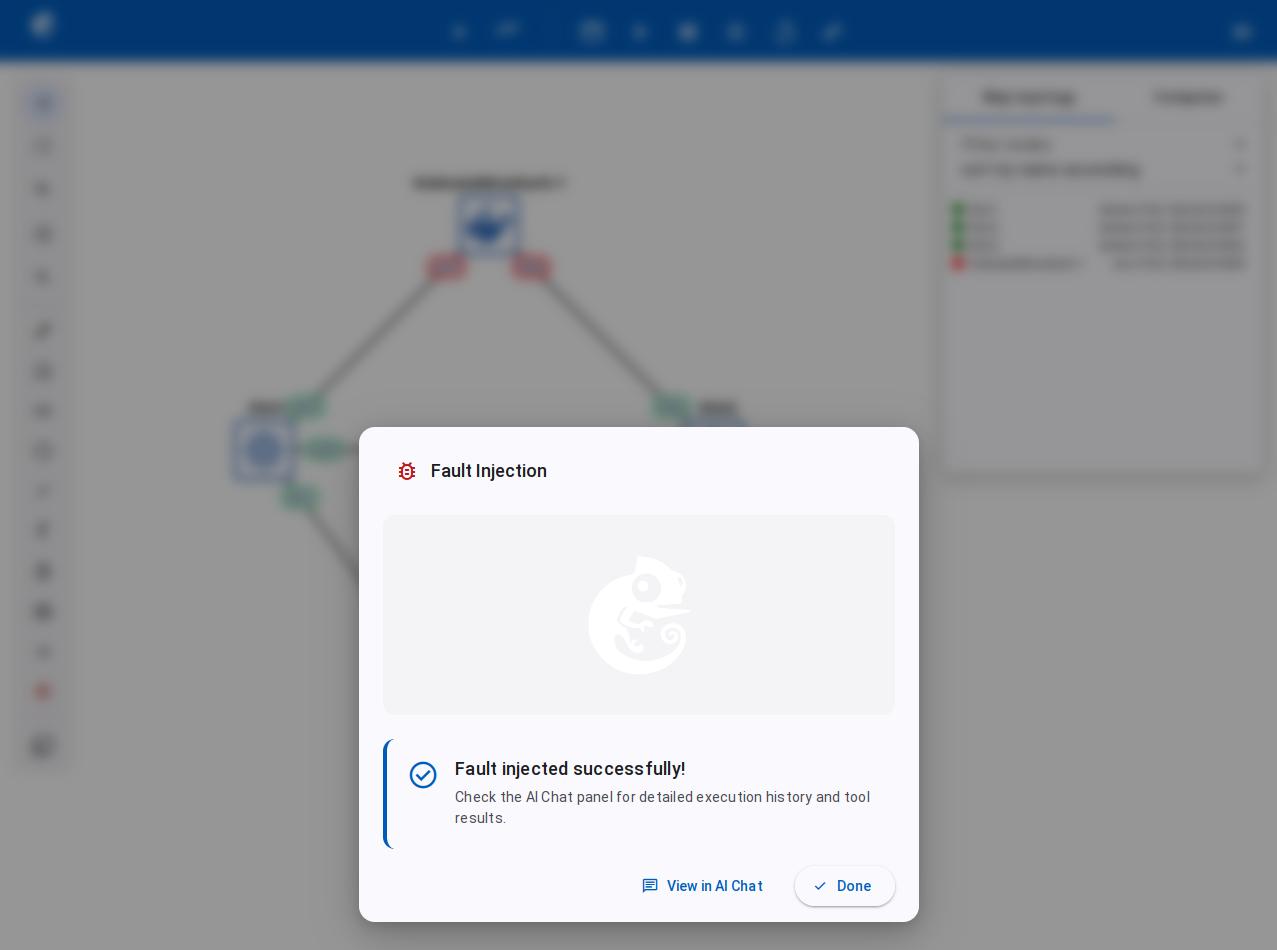

5. After the fault injection is done, you can see the results.

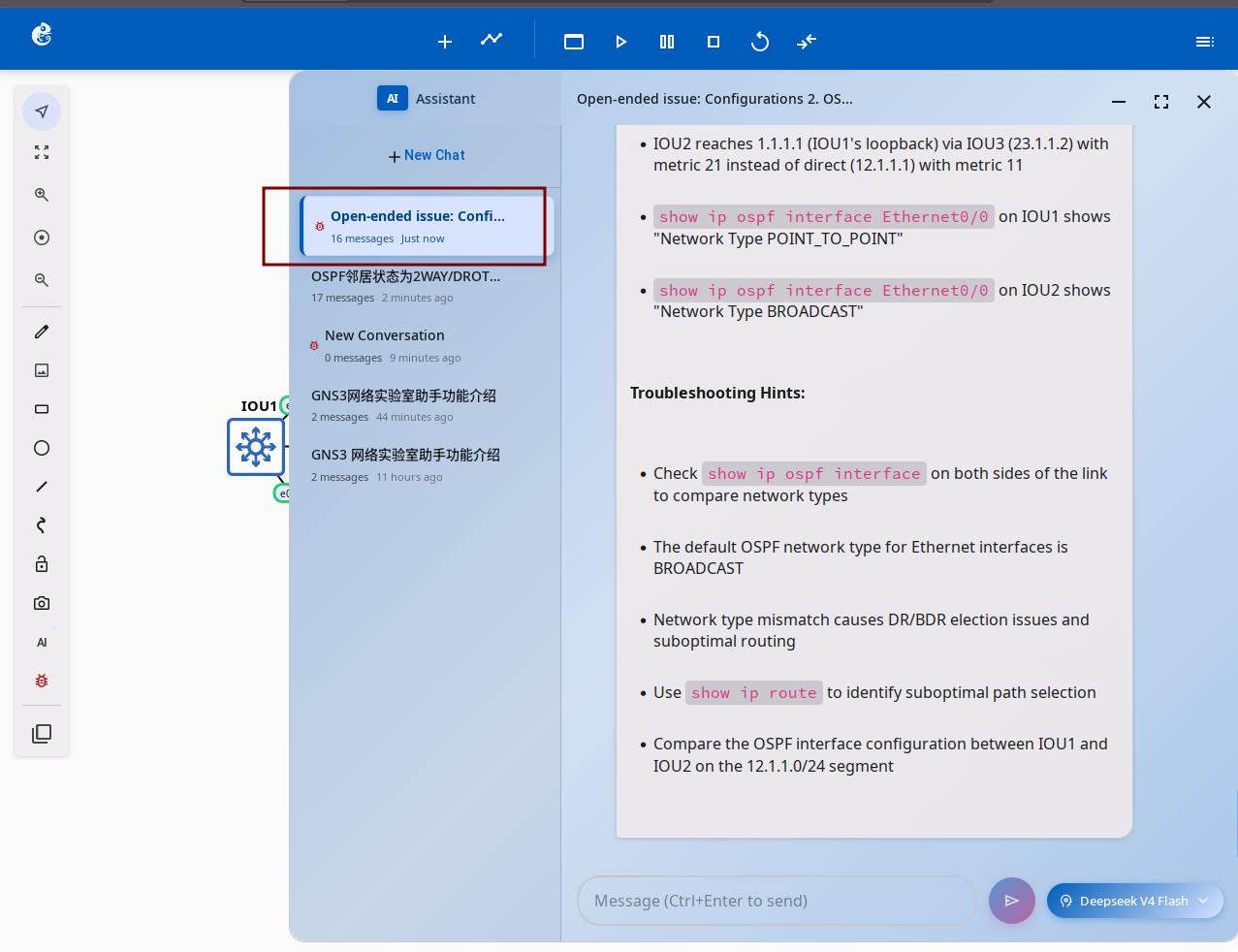

6. Check the AI Assistant for the detailed steps of the fault injection. This can help you if you are not sure about the cause of the problem.



Architecture Overview

Core Flow

Tool Overview

Tool	Source File	Purpose	Available Modes
InjectionSkillsTool	registry.py (skills module)	Query protocol-level fault definitions (config change commands)	troubleshooting_injection
GNS3PacketFilterTool	gns3_packet_filter.py	Link-layer fault injection (delay, loss, corruption, BPF)	troubleshooting_injection
ExecuteMultipleDeviceConfigCommands	config_tools_nornir.py	Batch execute device config changes	troubleshooting_injection
ExecuteMultipleDeviceCommands	display_tools_nornir.py	Read device configuration (read-only)	troubleshooting_injection
GNS3TopologyTool	gns3_client	Get project topology info	troubleshooting_injection

Fault Injection API

Endpoint	Function
POST /v3/projects/{pid}/chat/inject	Trigger fault injection, set troubleshooting_injection mode and start Agent

Prerequisite: Project must be in opened state, otherwise returns 403.

GNS3PacketFilterTool Link Filters

Simulates network impairment at the link layer by applying delay, packet loss, corruption, or dropping matching traffic to disrupt link quality. The bpf filter matches packets using BPF expressions and drops them, enabling precise link interference.

Filter Type	Function	Parameters
delay	Latency + jitter	[latency(0-32767), jitter(0-32767)]
packet_loss	Packet loss rate	[chance(0-100)]
corrupt	Packet corruption rate	[chance(0-100)]
frequency_drop	Drop every Nth packet	[frequency(-1~32767)]
bpf	Berkeley Packet Filter (standard BPF syntax)	Text expression, supports protocol (arp/icmp/tcp), port (port 80), host (host 10.0.0.1), net (net 192.168.0.0/16), logical combos (and/or/not), same as tcpdump syntax

Agent Workflow (LangGraph)

Key Design Points

1. Dedicated API Endpoint — POST /chat/inject is specifically for fault injection, automatically switches to troubleshooting_injection mode
2. LLM-driven Fault Selection — LLM analyzes topology, queries matching protocol faults via InjectionSkillsTool, no hardcoded scenarios
3. Dual-layer Injection — Device-level config changes + link-level network impairment for complete troubleshooting coverage
4. Reversible Faults — Each injection includes recovery commands; link filters can be cleared with action: clear
5. Safety First — BPF syntax pre-validated via tshark; config commands restricted by command_filter
6. Context Filtering — InjectionSkillsTool requires context parameter, returns only faults matching the topology protocol

Feature Contributor

Fault Injection feature was developed and contributed by YueGuobin.
